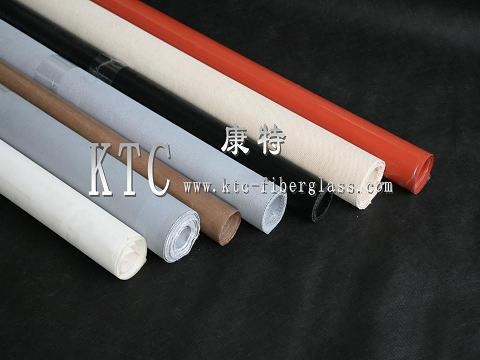

PTFE coated fiberglass cloth cnkangtex

Item Code:cnkangtex Features:PTFE coated fiberglass cloth is made by impregnating in PTFE suspension quality E-glass cloth. The produce is a high performance and multiple use new composite product.
  • Description
  • Nanjing KTC

Features:
1. Use temperature is between -196OC and 300OC,
2. With little surface tension, not attract any foreign matter, with self-cleaning function,
3. Resistance to corrosion from strong acid, strong alkali and other organic solvent.
4. Low friction coefficient, prove to be best choice for oil free lubrication,
5. Transmissivity between 6~13%,
6. Excellent weatherability in the field, with a service life up to 20 years,
7. Good electric insulation,
8. Physicochemical performance data see table 1
Code Tickness(mm) Bursting strength(MPa) Breaking srtength(N/50mm) Combustible(%) Width(cm)
warp Weft
EWP180 0.18±0.02 ≥1.5 ≥1250 ≥850 ≥30 90~127±1.5
EWP280 0.28±0.03 ≥1.6 ≥1750 ≥1750 ≥30 90~127±1.5
EWP550 0.55±0.04 ≥1.7 ≥2500 ≥2500 ≥30 90~127±1.5
Application:
Due to its unique features, PTFE-coated fiberglass cloth finds wide application in the fields of aviation, electronics, textiles, foodstuff, building materials, pharmacy and garments. It can be used as anti-corrosion wrapping, lining and pad, anti-sticky conveyer belt, high frequency copper clad panels, films for building construction, insulation material, microwave drying belt, flexible compensator and friction material etc.

Other Products

Product Name:
PTFE coated fiberglass fabric
Model:
cnkangtex
Description:
This product made of fiberglass fabric impregnated with emulsion of PTFE 。 Substrates:E-fiberglass , C-fiberglass, S-fiberglass , AR- fiberglass fabrics.
Product Name:
Structure membrane
Model:
cnkangtex
Description:
Structure membrane made of fiberglass fabrics impregnated with PTFE or PVC and then coated with fluoride or silicon materials. Fiberglass: B grade, very fine fiberglass
more
